BG1 - Union nut with BSP thread
Union nut with BSP thread for union types for B01, B02 and B03.

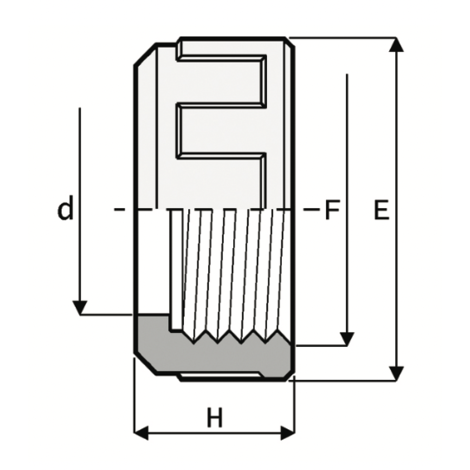

| Reference | Name | dimensionalTable | Material | division | family | subfamily | D | d | H | F | E | g |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1RBG111000L | BG1 - Union nut with BSP thread | - | PVC-U | Sistema PVC-U | Sistema PVC-U | Tubo y accesorios PVC-U presión | 110 | 130 | 59 | 5" | 163 | 448 |
| 1RBG116000 | BG1 - Union nut with BSP thread | - | PVC-U | Sistema PVC-U | Sistema PVC-U | Tubo y accesorios PVC-U presión | 16 | 22 | 23 | 3/4" | 34 | 10 |
| 1RBG120000 | BG1 - Union nut with BSP thread | - | PVC-U | Sistema PVC-U | Sistema PVC-U | Tubo y accesorios PVC-U presión | 20 | 28 | 23 | 1" | 42 | 20 |
| 1RBG125000 | BG1 - Union nut with BSP thread | - | PVC-U | Sistema PVC-U | Sistema PVC-U | Tubo y accesorios PVC-U presión | 25 | 36 | 25 | 1"1/4 | 52 | 30 |
| 1RBG132000 | BG1 - Union nut with BSP thread | - | PVC-U | Sistema PVC-U | Sistema PVC-U | Tubo y accesorios PVC-U presión | 32 | 42 | 27 | 1"1/2 | 59 | 40 |
| 1RBG140000 | BG1 - Union nut with BSP thread | - | PVC-U | Sistema PVC-U | Sistema PVC-U | Tubo y accesorios PVC-U presión | 40 | 53 | 30 | 2" | 72 | 59 |
| 1RBG150000 | BG1 - Union nut with BSP thread | - | PVC-U | Sistema PVC-U | Sistema PVC-U | Tubo y accesorios PVC-U presión | 50 | 59 | 34 | 2"1/2 | 79 | 75 |
| 1RBG163000 | BG1 - Union nut with BSP thread | - | PVC-U | Sistema PVC-U | Sistema PVC-U | Tubo y accesorios PVC-U presión | 63 | 74 | 38 | 2"3/4 | 96 | 108 |
| 1RBG175000L | BG1 - Union nut with BSP thread | - | PVC-U | Sistema PVC-U | Sistema PVC-U | Tubo y accesorios PVC-U presión | 75 | 93 | 45 | 3"1/2 | 120 | 198 |
| 1RBG190000L | BG1 - Union nut with BSP thread | - | PVC-U | Sistema PVC-U | Sistema PVC-U | Tubo y accesorios PVC-U presión | 90 | 106 | 52 | 4" | 135 | 278 |
