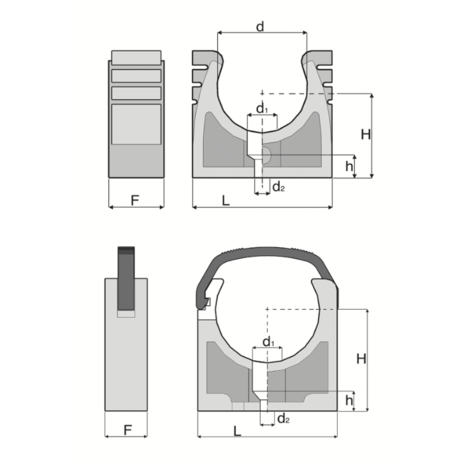

| Reference | Name | dimensionalTable | Material | D | PN | H | L | d2 | d1 | h | f | Fig. | g |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1RST411000 | ST4 - Pipe clip | - | PVC-U | 4" | 16 | 84 | 139 | 9 | 17 | 14 | 30 | B | 100 |
| 1RST420000 | ST4 - Pipe clip | - | PVC-U | 1/2" | 16 | 25 | 33 | 5 | 10 | 7 | 16 | A | 7 |
| 1RST425000 | ST4 - Pipe clip | - | PVC-U | 3/4" | 16 | 27 | 38 | 5 | 10 | 7 | 16 | A | 8 |
| 1RST432000 | ST4 - Pipe clip | - | PVC-U | 1" | 16 | 31 | 48 | 5 | 10 | 7 | 16 | A | 13 |
| 1RST440000 | ST4 - Pipe clip | - | PVC-U | 1 1/4" | 16 | 41 | 54 | 5 | 10 | 7 | 20 | B | 23 |
| 1RST450000 | ST4 - Pipe clip | - | PVC-U | 1 1/2" | 16 | 46 | 64 | 7 | 14 | 9 | 23 | B | 29 |
| 1RST463000 | ST4 - Pipe clip | - | PVC-U | 2" | 16 | 56 | 80 | 7 | 14 | 9 | 25 | B | 39 |
| 1RST475000 | ST4 - Pipe clip | - | PVC-U | 2 1/2" | 16 | 63 | 94 | 9 | 17 | 10 | 27 | B | 55 |
| 1RST490000 | ST4 - Pipe clip | - | PVC-U | 3" | 16 | 72 | 115 | 9 | 17 | 13 | 30 | B | 85 |
