1V302 - Single union ball valve
Single union ball valve for irrigation and water supply systems.
Single union grey PVC ball valve, ISO metric plain solvent weld socket, with free ball support.
EPDM seals.
PE ball seats.
Astore 302 is a single union ball valve for irrigation and water supply systems, with free ball support, which ensures a quick and easy installation and a convenient maintenance.
Main features:
- Versions available: ISO metric (1V302) and BS standard (3V302) plain solvent weld socket, BSP female threaded socket (1V301).
- Construction: Single union grey PVC ball valve, with free ball support
- Size range: DN 10 ÷ 100
- Nominal pressure:
- DN 10÷50: PN16 with water at 20°C
- DN 65÷80: PN10 with water at 20°C
- DN 100: PN6 with water at 20°C
- Temperature range: 0 °C ÷ 60 °C
- Coupling standards:
- Solvent welding: ISO 727, EN ISO 1452-4 (model 1V302); BS4346-1 (model 3V302)
- Thread: UNI ISO 228-1, ISO 7-1, UNI EN ISO 1452-4 (model 1V301)
- Valve material: PVC-U
- Seal material:
- EPDM (O-Ring)
- PE (ball seats)
- Control options: Manual control
EPDM

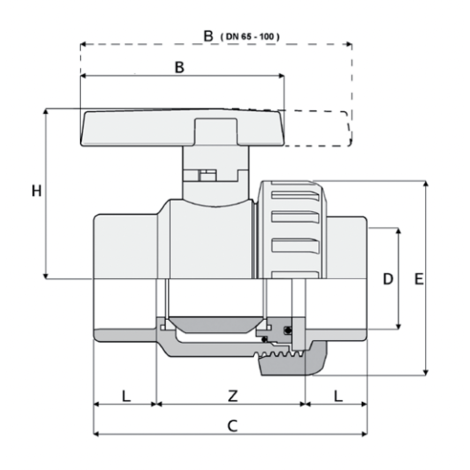

| Reference | H | Z | DN | D | g |
|---|---|---|---|---|---|
| 1V30211000LW | 171 | 150 | 100 | 110 | 4700 |
| 1V30216000H | 50 | 41 | 10 | 16 | 97 |
| 1V30220000H | 50 | 42 | 15 | 20 | 100 |
| 1V30225000H | 55 | 48 | 20 | 25 | 155 |
| 1V302320000H | 63 | 56 | 25 | 32 | 240 |
| 1V30240000H | 76 | 62 | 32 | 40 | 350 |
| 1V30250000H | 88 | 74 | 40 | 50 | 550 |
| 1V30263000H | 102 | 86 | 50 | 63 | 930 |
| 1V30275000LW | 138 | 122 | 65 | 75 | 2600 |
| 1V30290000LW | 138 | 124 | 80 | 90 | 2700 |
