1V303 - Single union ball valve
Single union ball valve for irrigation and water supply systems.
Single union grey PVC ball valve, BSP female threaded socket on nut side and BSP male threaded socket on valve body side, with free ball support.
EPDM seals.
PE ball seats.
Astore 303 is a single union ball valve for irrigation and water supply systems, with free ball support, which ensures a quick and easy installation and a convenient maintenance.
Main features:
- Version available is BSP female threaded socket on nut side and BSP male threaded on valve body side.
- Construction: Single union grey PVC ball valve, with free ball support
- Size range: DN 10 ÷ 50
- Nominal pressure:
- PN16 with water at 20°C
- Temperature range: 0 °C ÷ 60 °C
- Coupling standards:
- Solvent welding: ISO 727, EN ISO 1452-4
- Thread: UNI ISO 228-1, ISO 7-1, UNI EN ISO 1452-4
- Valve material: PVC-U
- Seal material:
- EPDM (O-Ring)
- PE (ball seats)
- Control options: Manual control
EPDM

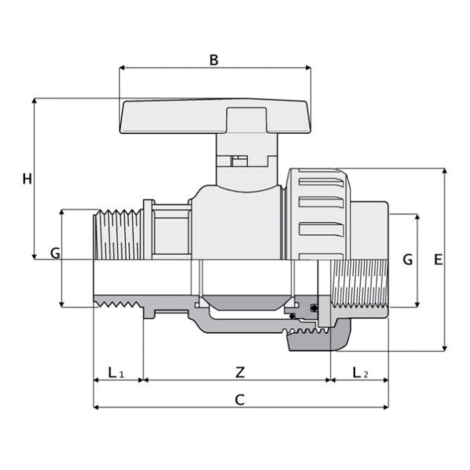

| Reference | H | L1 | L2 | Z | DN | g |
|---|---|---|---|---|---|---|
| 1V30316000H | 50 | 12 | 13 | 60 | 10 | 100 |
| 1V30320000H | 57 | 17 | 53 | 85 | 15 | 105 |
| 1V30325000H | 55 | 17 | 20 | 61 | 20 | 160 |
| 1v30332000h | 63 | 19 | 22 | 72 | 25 | 245 |
| 1v30340000h | 76 | 22 | 24 | 84 | 32 | 360 |
| 1v30350000h | 88 | 22 | 24 | 104 | 40 | 590 |
| 1V30325000H | 102 | 26 | 29 | 122 | 50 | 980 |
