1V421 - Spheric ball valve

True union ball valve for swimming pools and water supply systems.

True union grey PVC spheric ball valve, BSP female threaded socket, with fixed ball support and radial disassembly.
EPDM seals.
PE ball seats.

Astore 420 is a true union ball valve for swimming pools and water supply systems, with fixed ball support and radial disassembly, which allow a simple and safe installation and a reliable service over time.

Main features:

- Versions available: ISO metric (1V420) and BS standard (3V420) plain solvent weld socket, BSP female threaded socket (1V421).
- Available to be produced in other international standards (ASTM, JIS, NPT) upon request.
- Construction: True union grey PVC spheric ball valve, with fixed ball support and radial disassembly
- Size range: DN 10 ÷ 100
- Nominal pressure:
  - DN 10÷50: PN16 with water at 20°C
  - DN 65÷100: PN10 with water at 20°C
- Temperature range: 0 °C ÷ 60 °C
- Coupling standards:
  - Solvent welding: ISO 727, EN ISO 1452-4 (model 1V724)
  - Thread: UNI ISO 228-1, ISO 7-1, UNI EN ISO 1452-4 (model 1V421)
- Valve material: PVC-U grey
- Seal material:
  - EPDM (O-Ring)
  - PE (ball seats)
- Control options: Manual control

Go back Data sheet

EPDM

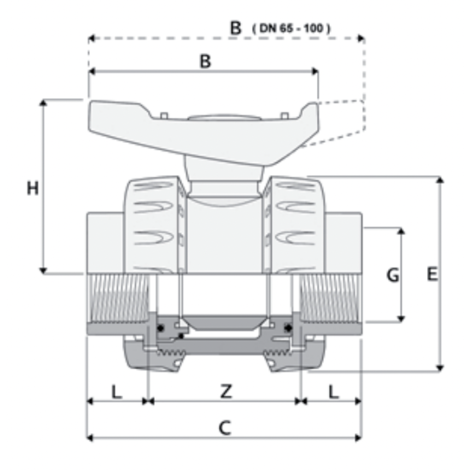

Reference	H	Z	DN	g
1V42101600	51	56	10	150
1V42102000	51	56	15	145
1V42102500	59	55	20	225
1V42103200	66	66	25	320
1V42104000	77	79	32	515
1V42105000	87	83	40	735
1V42106300	105	103	50	1260
1V42107500	138	164	65	3400
1V42109000	138	172	80	3500
1V42111000	171	200	100	5900
