GO1 - 90° elbow
PVC pressure fittings.
90° elbow with solvent weld sockets.
PVC (polyvinyl chloride) fittings for use in pressurised Irrigation Systems, water adduction, chemical installations and for water treatment in general.

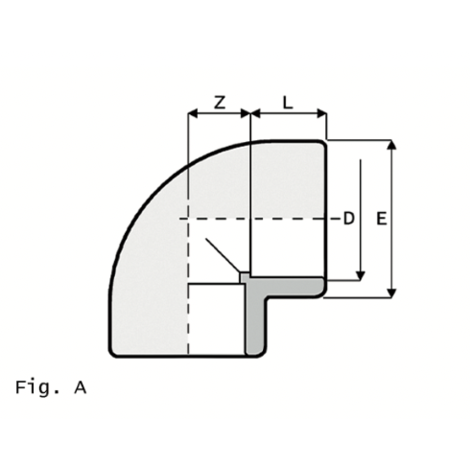

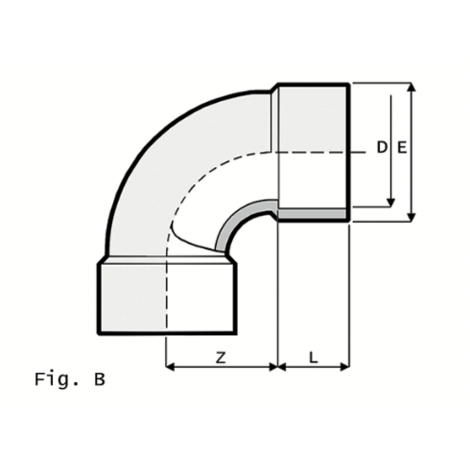

| Reference | Z | D | g |
|---|---|---|---|
| 1RGO111000 | 57 | 110 | 1020 |
| 1RTI113000 | 66 | 125 | 1385 |
| 1RGO115000 | 72 | 140 | 2125 |
| 1RGO116000 | 9 | 16 | 14 |
| 1RGO117000 | 82 | 160 | 2920 |
| 1RGO120000NL | 12 | 20 | 15 |
| 1RGO121000 | 102 | 200 | 5400 |
| 1RGO123000 | 115 | 225 | 7550 |
| 1RGO125000 | 14 | 25 | 35 |
| 1RGO126000 | 188 | 250 | 12480 |
| 1RGO128000 | 210 | 280 | 17000 |
| 1RGO132000 | 17 | 32 | 38 |
| 1RGO133000 | 236 | 315 | 23370 |
| 1RGO140000 | 21 | 40 | 95 |
| 1RGO150000 | 26 | 50 | 114 |
| 1RGO163000 | 33 | 63 | 197 |
| 1RGO175000 | 39 | 75 | 402 |
| 1RGO190000 | 47 | 90 | 600 |
- Size range:
-
- d 12 ÷ d 315 mm
- Nominal pressure:
- PN 16 with water at 20 °C up to d 160 mm, PN 10 from d 180 to d 315
- Temperature range: 0 °C ÷ 60 °C
- Reference standards:
- ISO 727, EN ISO 1452-3, EN ISO 15493, BS 4346-1, UNI EN 10226-1
- Fitting material: PVC-U
- Seal material:
- Gaskets in EPDM, on request FKM
- Reinforcing rings (TM3, GM3, MM3, RM3) in stainless steel AISI 430
