HBM PN10 SDR 11 - S 5 - Fittings equal ends

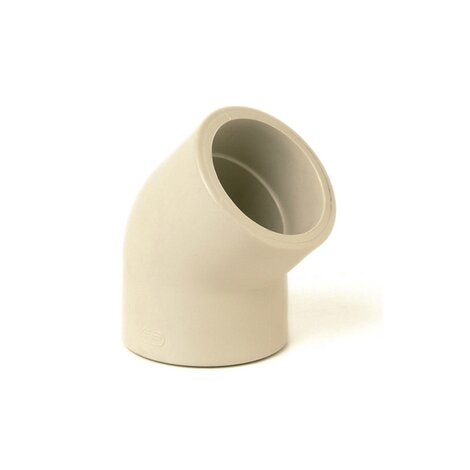

45° bend, long spigot for butt welding PN10 SDR 11 - S 5.
Series of fittings designed for conveying fluids under pressure with a weld connection system (butt welding).

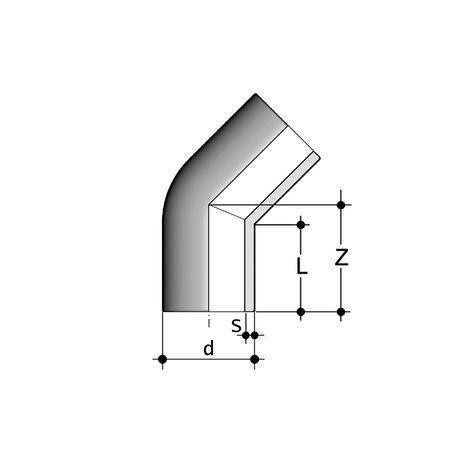

| Reference | Z | d | g |
|---|---|---|---|
| HBM11020 | 72 | *20 | 19 |
| HBM11025 | 76 | *25 | 30 |
| HBM11032 | 90 | *32 | 56 |
| HBM11040 | 95 | *40 | 88 |
| HBM11050 | 76 | *50 | 110 |
| HBM11063 | 88 | *63 | 205 |
| HBM11075 | 90 | *75 | 290 |
| HBM11090 | 105 | *90 | 460 |
| HBM11110 | 121 | *110 | 785 |
| HBM11125 | 137 | *125 | 1130 |
| HBM11140 | 168 | *140 | 1685 |
| HBM11160 | 190 | *160 | 2550 |
| HBM11180 | 196 | *180 | 3285 |
| HBM11200 | 207 | *200 | 4540 |
| HBM11225 | 210 | *225 | 5750 |
| HBM11250 | 220 | *250 | 7875 |
| HBM11280 | 227 | *280 | 10060 |
| HBM11315 | 250 | *315 | 13675 |
*resale products
