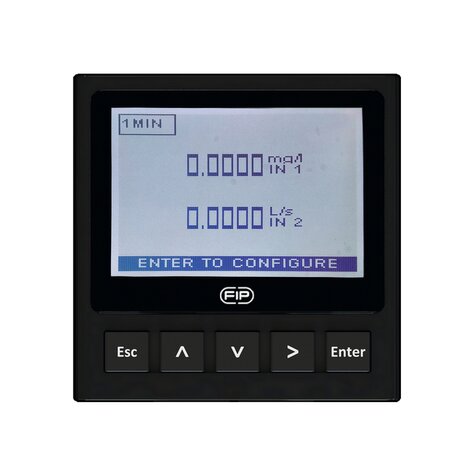

M9.10.PX - M9.10.WX

Dual Parameter Analog signal Monitor and Transmitter.

The FLS M9.10 monitor and transmitter is a powerful instrument designed to handle an analogue and a frequency signal (or two analogue signals) emitted by any type of device with a 4‑20 mA or frequency output. The M9.10 monitor is equipped with a large 4" graphic display which shows measured values clearly and a lot of other useful information. Moreover, due to a multicolour display plus a powerful backlight, measurement status can be determined easily from afar too. A tutorial software guarantees a mistake‑proof and fast set up of every parameter. Calibrations of the 4‑20 mA input can be carried out by correcting 2 points and 1 point or by using a reference value with the new "in‑line calibration". Frequency input calibration can be performed by fine tuning the installation features or using a reference value through the new "in‑line calibration". Two independent 4‑20 mA outputs are available to communicate measurements to an external remote device. Appropriate combination of digital outputs (2 solid state relays and 2 relays) allows customised setups for any process to be controlled. The USB port on the back allows you to update the software with a wide range of customisation services as standard and on‑demand.
