MA3 - Double socket

PVC pressure fittings.

Double socket with solvent weld socket and BSP threaded female end

PVC (polyvinyl chloride) fittings for use in pressurised Irrigation Systems, water adduction, chemical installations and for water treatment in general.

GO3 - 90° elbow

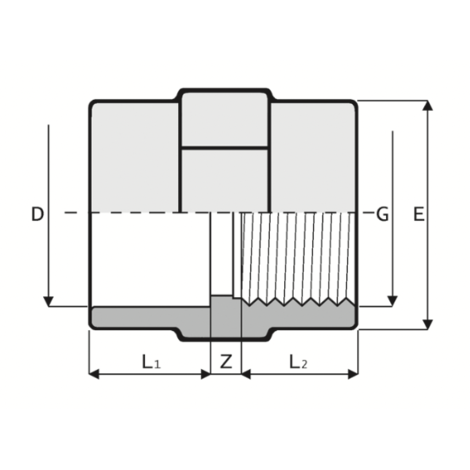

Reference Name product.detail.attribute.technicalFeatures dimensionalTable Main category Subcategory Sub sub category system Category family series Material division subfamily D x G PN L1

L2

 Z E g
1RMA316A00 MA3 - Double socket Size range:  d 16 x 3/8" ÷ d 110 x 4" Nominal pressure: Imperial BS Series: Class E with water at 20°C up to d 4", Class D up to 6" BS/BSP transition fittings: Class E up to 2", Class D from 2"1/2 to 4" Temperature range: 0 °C ÷ 60 °C Reference standards: ISO 7-1, ISO 228-1 Fitting material: PVC-U Seal material: Gaskets in EPDM, on request FKM Reinforcing rings (TM3, GM3, MM3, RM3) in stainless steel AISI 430 - PVC-U system Ball valves TKD DN 10÷50 PVC-U system Pressure Fittings Sistema PVC-U Double socket PVC-U Sistema PVC-U Tubo y accesorios PVC-U presión 16 x 3/8" 16 14 11 6 24 12
1RMA320B00 MA3 - Double socket Size range:  d 16 x 3/8" ÷ d 110 x 4" Nominal pressure: Imperial BS Series: Class E with water at 20°C up to d 4", Class D up to 6" BS/BSP transition fittings: Class E up to 2", Class D from 2"1/2 to 4" Temperature range: 0 °C ÷ 60 °C Reference standards: ISO 7-1, ISO 228-1 Fitting material: PVC-U Seal material: Gaskets in EPDM, on request FKM Reinforcing rings (TM3, GM3, MM3, RM3) in stainless steel AISI 430 - PVC-U system Ball valves TKD DN 10÷50 PVC-U system Pressure Fittings Sistema PVC-U Double socket PVC-U Sistema PVC-U Tubo y accesorios PVC-U presión 20 x 1/2" 16 16 15 4 29 20
1RMA325C00 MA3 - Double socket Size range:  d 16 x 3/8" ÷ d 110 x 4" Nominal pressure: Imperial BS Series: Class E with water at 20°C up to d 4", Class D up to 6" BS/BSP transition fittings: Class E up to 2", Class D from 2"1/2 to 4" Temperature range: 0 °C ÷ 60 °C Reference standards: ISO 7-1, ISO 228-1 Fitting material: PVC-U Seal material: Gaskets in EPDM, on request FKM Reinforcing rings (TM3, GM3, MM3, RM3) in stainless steel AISI 430 - PVC-U system Ball valves TKD DN 10÷50 PVC-U system Pressure Fittings Sistema PVC-U Double socket PVC-U Sistema PVC-U Tubo y accesorios PVC-U presión 25 x 3/4" 16 19 16 5 35 30
1RMA332D00 MA3 - Double socket Size range:  d 16 x 3/8" ÷ d 110 x 4" Nominal pressure: Imperial BS Series: Class E with water at 20°C up to d 4", Class D up to 6" BS/BSP transition fittings: Class E up to 2", Class D from 2"1/2 to 4" Temperature range: 0 °C ÷ 60 °C Reference standards: ISO 7-1, ISO 228-1 Fitting material: PVC-U Seal material: Gaskets in EPDM, on request FKM Reinforcing rings (TM3, GM3, MM3, RM3) in stainless steel AISI 430 - PVC-U system Ball valves TKD DN 10÷50 PVC-U system Pressure Fittings Sistema PVC-U Double socket PVC-U Sistema PVC-U Tubo y accesorios PVC-U presión 32 x 1" 16 22 19 6 43 48
1RMA340E00 MA3 - Double socket Size range:  d 16 x 3/8" ÷ d 110 x 4" Nominal pressure: Imperial BS Series: Class E with water at 20°C up to d 4", Class D up to 6" BS/BSP transition fittings: Class E up to 2", Class D from 2"1/2 to 4" Temperature range: 0 °C ÷ 60 °C Reference standards: ISO 7-1, ISO 228-1 Fitting material: PVC-U Seal material: Gaskets in EPDM, on request FKM Reinforcing rings (TM3, GM3, MM3, RM3) in stainless steel AISI 430 - PVC-U system Ball valves TKD DN 10÷50 PVC-U system Pressure Fittings Sistema PVC-U Double socket PVC-U Sistema PVC-U Tubo y accesorios PVC-U presión 40 x 1"1/4 16 26 21 5 50 56
1RMA350F00 MA3 - Double socket Size range:  d 16 x 3/8" ÷ d 110 x 4" Nominal pressure: Imperial BS Series: Class E with water at 20°C up to d 4", Class D up to 6" BS/BSP transition fittings: Class E up to 2", Class D from 2"1/2 to 4" Temperature range: 0 °C ÷ 60 °C Reference standards: ISO 7-1, ISO 228-1 Fitting material: PVC-U Seal material: Gaskets in EPDM, on request FKM Reinforcing rings (TM3, GM3, MM3, RM3) in stainless steel AISI 430 - PVC-U system Ball valves TKD DN 10÷50 PVC-U system Pressure Fittings Sistema PVC-U Double socket PVC-U Sistema PVC-U Tubo y accesorios PVC-U presión 50 x 1"1/2 16 31 21 8 61 102
1RMA363G00 MA3 - Double socket Size range:  d 16 x 3/8" ÷ d 110 x 4" Nominal pressure: Imperial BS Series: Class E with water at 20°C up to d 4", Class D up to 6" BS/BSP transition fittings: Class E up to 2", Class D from 2"1/2 to 4" Temperature range: 0 °C ÷ 60 °C Reference standards: ISO 7-1, ISO 228-1 Fitting material: PVC-U Seal material: Gaskets in EPDM, on request FKM Reinforcing rings (TM3, GM3, MM3, RM3) in stainless steel AISI 430 - PVC-U system Ball valves TKD DN 10÷50 PVC-U system Pressure Fittings Sistema PVC-U Double socket PVC-U Sistema PVC-U Tubo y accesorios PVC-U presión 63 x 2" 16 38 26 8 76 181
  • Size range:
    • d 16 x 3/8" ÷ d 110 x 4"
  • Nominal pressure:
    • Imperial BS Series: Class E with water at 20°C up to d 4", Class D up to 6"
    • BS/BSP transition fittings: Class E up to 2", Class D from 2"1/2 to 4"
  • Temperature range: 0 °C ÷ 60 °C
  • Reference standards:
    • ISO 7-1, ISO 228-1
  • Fitting material: PVC-U
  • Seal material:
    • Gaskets in EPDM, on request FKM
    • Reinforcing rings (TM3, GM3, MM3, RM3) in stainless steel AISI 430

Downloads

Technical catalogue PVC-U Astore Manual valves
en get_app it get_app
17 MB, PDF
ASTORE Technical Catalogue
Technical catalogue PVC-U Astore Manual valves
