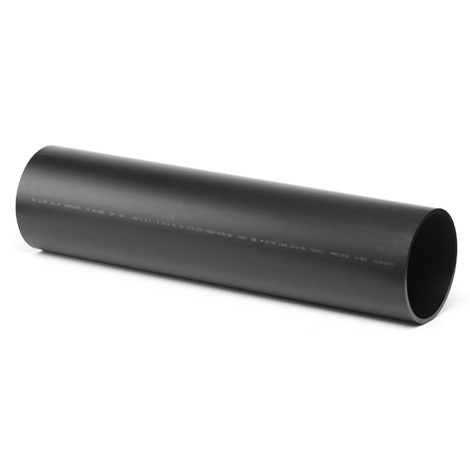

Pipe tempered

Drainage pipe d40-315 mm according to EN 1519 for application in buildings, d110-315 mm for burried pipe application according EN 12666.

S= pipe class.
A (cm^{2<>) = cross sectional area of flow.}

Go back

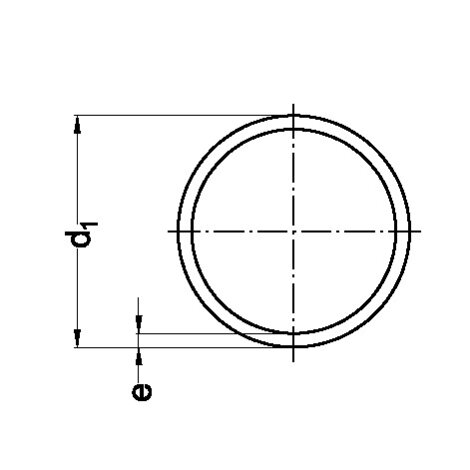

Reference	Name	q	Kg	d1	S	Main category	Subcategory	e	aCm2	Kg / m
10 04 00	Pipe tempered	1130	0,356	40	12,5	Pipes	Pipes	3,0	9,1	0,36
10 05 00	Pipe tempered	745	0,453	50	12,5	Pipes	Pipes	3,0	15,2	0,45
10 06 00	Pipe tempered	440	0,579	63	12,5	Pipes	Pipes	3,0	25,5	0,58
10 07 00	Pipe tempered	315	0,696	75	12,5	Pipes	Pipes	3,0	37,4	0,70
10 09 00	Pipe tempered	470	0,001	90	12,5	Pipes	Pipes	3,5	54,1	0,98
10 11 00	Pipe tempered	340	1,431	110	12,5	Pipes	Pipes	4,2	80,7	1,43
10 12 00	Pipe tempered	260	1,841	125	12,5	Pipes	Pipes	4,8	104,2	1,85
10 16 00	Pipe tempered	135	3,040	160	12,5	Pipes	Pipes	6,2	171,1	3,04
10 20 10	Pipe tempered	90	4,692	200	12,5	Pipes	Pipes	7,7	267,6	4,69
10 25 10	Pipe tempered	55	7,296	250	12,5	Pipes	Pipes	9,6	418,4	7,30
10 31 10	Pipe tempered	40	11,582	315	12,5	Pipes	Pipes	12,1	664,2	11,60
10 56 00	Pipe tempered	580	0,511	56	12,5	Pipes	Pipes	3,0	19,6	0,51
