POWER-LOCK bend 22° F/F PN16
Bend PVC-U, F/F, Grey RAL 7011, FORSHEDA 601 POWER-LOCK® connection.
The fittings comply with UNI EN ISO 1452, DIN 8063, ISO 2045, ISO/DIS 6455 standards for the transport of pressurised fluids for the supply of drinking water, wastewater and food fluids: oil, wine, milk.

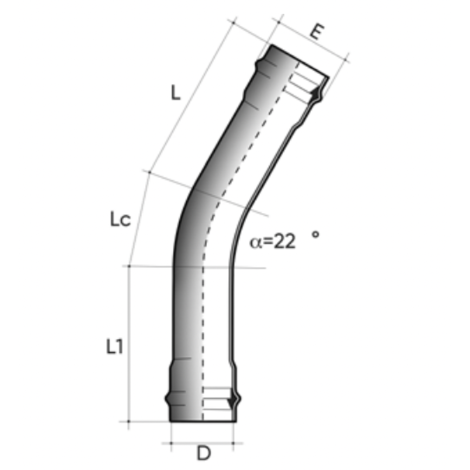

| Reference | D (mm) | L (mm) |
|---|---|---|
| PBVPN16063FF2L | 63 | 355 |
| PBVPN16075FF2L | 75 | 330 |
| PBVPN16090FF2L | 90 | 300 |
| PBVPN16110FF2L | 110 | 320 |
| PBVPN16125FF2L | 125 | 330 |
| PBVPN16140FF2L | 140 | 335 |
| PBVPN16160FF2L | 160 | 340 |
| PBVPN16180SS2L | 180* | 635 |
| PBVPN16200FF2L | 200 | 635 |
| PBVPN16225FF2L | 225 | 545 |
| PBVPN16250FF2L | 250 | 665 |
| PBVPN16280FF2L | 280 | 530 |
| PBVPN16315FF2L | 315 | 570 |
*Rubber ring
