POWER-LOCK bend 30° F/F PN10
Bend PVC-U, F/F, Grey RAL 7011, FORSHEDA 601 POWER-LOCK® connection.
The fittings comply with UNI EN ISO 1452, DIN 8063, ISO 2045, ISO/DIS 6455 standards for the transport of pressurised fluids for the supply of drinking water, wastewater and food fluids: oil, wine, milk.

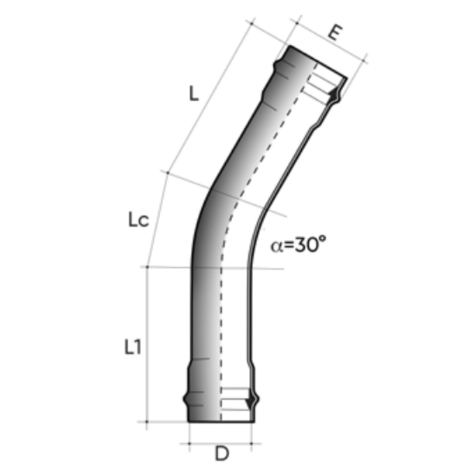

| Reference | D (mm) | L (mm) |
|---|---|---|
| PBVPN10063FF3L | 63 | 355 |
| PBVPN10075FF3L | 75 | 330 |
| PBVPN10090FF3L | 90 | 300 |
| PBVPN10110FF3L | 110 | 320 |
| PBVPN10125FF3L | 125 | 330 |
| PBVPN10140FF3L | 140 | 335 |
| PBVPN10160FF3L | 160 | 340 |
| PBVPN10180SS3L | 180* | 540 |
| PBVPN10200FF3L | 200 | 550 |
| PBVPN10225FF3L | 225 | 505 |
| PBVPN10250FF3L | 250 | 580 |
| PBVPN10280FF3L | 280 | 565 |
| PBVPN10315FF3L | 315 | 615 |
| PBVPN10400FF3L | 400 | 810 |
*Rubber ring
