POWER-LOCK bend 30° M/F PN10
Bend PVC-U, M/F, Grey RAL 7011, FORSHEDA 601 POWER-LOCK® connection.
The fittings comply with UNI EN ISO 1452, DIN 8063, ISO 2045, ISO/DIS 6455 standards for the transport of pressurised fluids for the supply of drinking water, wastewater and food fluids: oil, wine, milk.

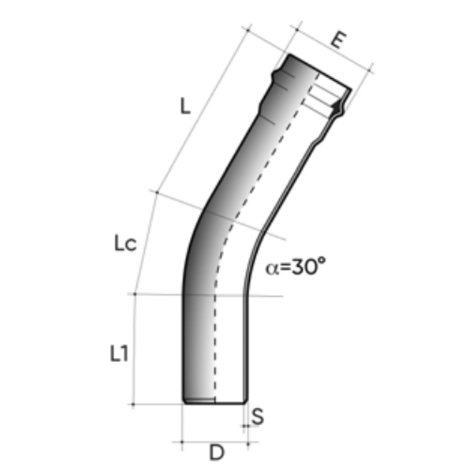

| Reference | D (mm) | L (mm) |
|---|---|---|
| PBVPN10063F3L | 63 | 350 |
| PBVPN10075F3L | 75 | 280 |
| PBVPN10090F3L | 90 | 320 |
| PBVPN10110F3L | 110 | 315 |
| PBVPN10125F3L | 125 | 350 |
| PBVPN10140F3L | 140 | 330 |
| PBVPN10160F3L | 160 | 330 |
| PBVPN10180S3L | 180* | 460 |
| PBVPN10200F3L | 200 | 475 |
| PBVPN10225F3L | 225 | 490 |
| PBVPN10250F3L | 250 | 510 |
| PBVPN10280F3L | 280 | 480 |
| PBVPN10315F3L | 315 | 590 |
| PBVPN10400F3L | 400 | 710 |
*Rubber ring
