POWER-LOCK bend 90° F/F PN10
Bend PVC-U, F/F, Grey RAL 7011, FORSHEDA 601 POWER-LOCK® connection.
The fittings comply with UNI EN ISO 1452, DIN 8063, ISO 2045, ISO/DIS 6455 standards for the transport of pressurised fluids for the supply of drinking water, wastewater and food fluids: oil, wine, milk.

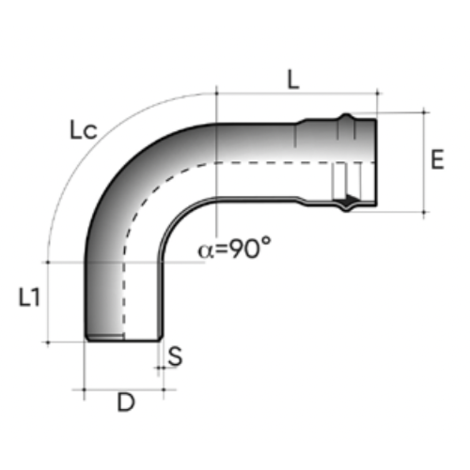

| Reference | D (mm) | L (mm) |
|---|---|---|
| PBVPN10063F1L | 63 | 270 |
| PBVPN10075F1L | 75 | 260 |
| PBVPN10090F1L | 90 | 280 |
| PBVPN10110F1L | 110 | 335 |
| PBVPN10125F1L | 125 | 320 |
| PBVPN10140F1L | 140 | 360 |
| PBVPN10160F1L | 160 | 335 |
| PBVPN10180SS9L | 180* | 560 |
| PBVPN10200F1L | 200 | 560 |
| PBVPN10225F1L | 225 | 660 |
| PBVPN10250F1L | 250 | 660 |
| PBVPN10280F1L | 280 | 745 |
| PBVPN10315F1L | 315 | 680 |
*Rubber ring
