Pressure pipe PVC-U PN6 forsheda

Tubo a pressione PVC-U PN6 UNI EN ISO 1452-2 Forsheda 601 Powerlock®, Grigio RAL 7011, lunghezza 6m.

Pressure pipes for joint system by cold chemical welding (gluing through the use of suitable WELD-ON adhesive and detergent primer) or FORSHEDA 601 POWERLOCK® pre-inserted and locked gasket joint.

Lareter rigid PVC pipes for pressure pipes are guaranteed by the certifications issued by IIP, CSTB, DVGW, WRAS and IMO.

Go back Data sheet

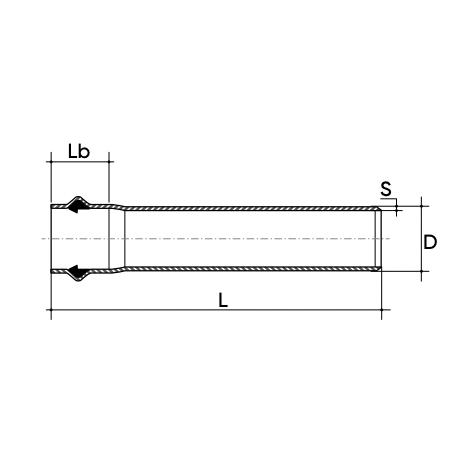

Disegno del tubo a pressione in PVC-U Forsheda
Reference D (mm) S (mm) Lb (mm) Qty x pallet
PIPEV26040S6L 40* 1.5 100 275
PIPEV26050S6L 50* 1.6 100 194
PIPEV33063F6L 63 2 110 123
PIPEV33075I6L 75 2.3 120 87
PIPEV33090I6L 90 2.8 130 96
PIPEV41110F6L 110 2.7 130 57
PIPEV41125F6L 125 3.1 150 51
PIPEV41140F6L 140 3.5 160 45
PIPEV41160F6L 160 4 165 33
PIPEV41180S6L 180* 4.4 170 28
PIPEV41200F6L 200 4.9 180 20
PIPEV41225F6L 225 5.5 200 18
PIPEV41250F6L 250 6.2 210 12
PIPEV41280F6L 280 6.9 210 11
PIPEV41315F6L 315 7.7 230 9
PIPEV41355F6L 355 8.7 250 6
PIPEV41400F6L 400 9.8 250 5
PIPEV41500F6L 500 12.3 255 2

* Rubber ring
  • Size range: d 16 - d 500 (mm)
  • Nominal pressure: PN 6-10-12,5-16-20-25 with water at 20° C
  • Temperature range: 0 °C ÷ 60 °C
  • Coupling standards
    • Solvent welding: EN ISO 15493, EN ISO 1452, DIN 8061/2.
    • Coupling: Forsheda 601 POWER-LOCK® Gasket
  • Reference standards
    • Construction criteria: EN ISO 15493, EN ISO 1452, DIN 8061/2
    • Test methods and requirements: EN ISO 15493, EN ISO 1452, DIN 8061/2
    • Installation criteria: DVS 2204, DVS 2221, UNI 11242, EN ISO 1452, DIN 8061/2
  • Pipe material: PVC-U dark grey RAL 7011
