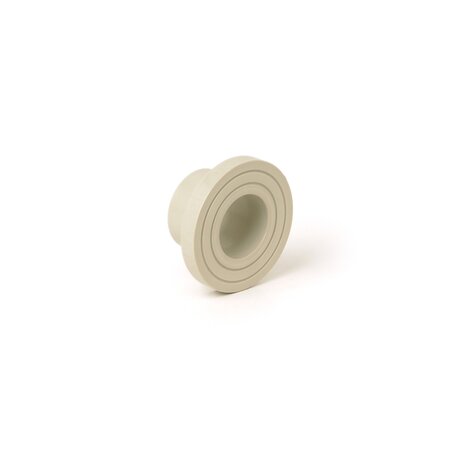

QBM PN10 SDR 11 - S 5 - Stub
Short spigot stub for butt welding for backing rings ISO/DIN ODB PN10 SDR 11 - S 5.
Series of fittings designed for conveying fluids under pressure with a weld connection system (butt welding).
| Reference | Z | d | g |
|---|---|---|---|
| QBM11020 | 52 | *20 | 18 |
| QBM11025 | 52 | *25 | 33 |
| QBM11032 | 50 | *32 | 44 |
| QBM11040 | 52 | *40 | 65 |
| QBM11050 | 57 | *50 | 85 |
| QBM11063 | 50 | 63 | 129 |
| QBM11075 | 50 | 75 | 200 |
| QBM11090 | 80 | 90 | 322 |
| QBM11110 | 80 | 110 | 430 |
| QBM11125 | 80 | *125 | 540 |
| QBM11140 | 83 | *140 | 715 |
| QBM11160 | 80 | 160 | 915 |
| QBM11180 | 127 | *180 | 920 |
| QBM11200 | 123 | *200 | 2160 |
| QBM11225 | 100 | 225 | 1780 |
| QBM11250 | 121 | *250 | 2915 |
| QBM11280 | 119 | *280 | 2900 |
| QBM11315 | 168 | *315 | 5525 |
| QBM11355 | 180 | *355 | 7730 |
| QBM11400 | 195 | *400 | 10485 |
| QBM11450 | 139 | *450 | 13350 |
| QBM11500 | 138 | *500 | 12730 |
*resale products
