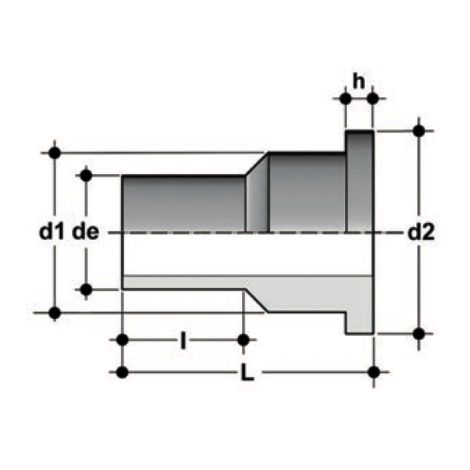

QBXM - Stub flange exit side for clapet wafer check valves SDR 11 - S5
Stub flange short spigot for butt welding, exit side for clapet wafer check valves
Series of fittings designed for conveying fluids under pressure with a weld connection system (butt welding).
| Reference | DN | d2 |
|---|---|---|
| QBXM11280 | 250 | 328 |
| QBXM11050 | 40 | 90 |
| QBXM11063 | 50 | 105 |
| QBXM11075 | 65 | 125 |
| QBXM11090 | 80 | 138 |
| QBXM11110 | 100 | 160 |
| QBXM11125 | 125 | 160 |
| QBXM11140 | 125 | 190 |
| QBXM11160 | 150 | 216 |
| QBXM11180 | 150 | 216 |
| QBXM11200 | 200 | 272 |
| QBXM11225 | 200 | 272 |
| QBXM11250 | 200 | 328 |
*resale products
