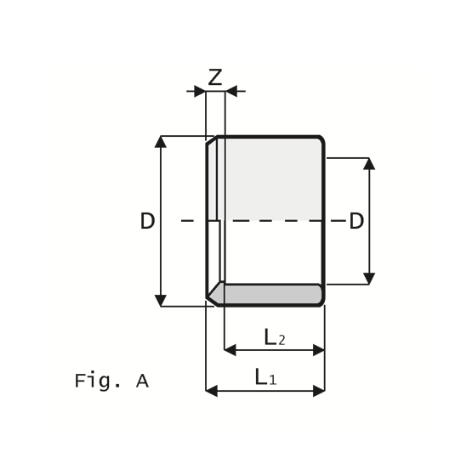

RC1 - Reducer
PVC pressure fittings.
Reducer with solvent weld double socket.
PVC (polyvinyl chloride) fittings for use in pressurised Irrigation Systems, water adduction, chemical installations and for water treatment in general.
| Reference | Z | g |
|---|---|---|
| 1RRC125A00 | 5 | 10 |
| 1RRC125B00NL | 3 | 5 |
| 1RRC132A00 | 8 | 15 |
| 1RRC132B00 | 6 | 18 |
| 1RRC132C00NL | 3 | 10 |
| 1RRC140B00NL | 9 | 25 |
| 1RRC140C00NL | 7 | 24 |
| 1RRC140D00 | 4 | 15 |
| 1RRC150B00 | 15 | 50 |
| 1RRC150C00 | 12 | 45 |
| 1RRC150D00NL | 8 | 35 |
| 1RRC150E00NL | 5 | 32 |
| 1RRC163D00NL | 16 | 73 |
| 1RRC163E00NL | 11 | 75 |
| 1RRC163F00 | 7 | 65 |
- Size range:
-
- d 12 ÷ d 315 mm
- Nominal pressure:
- PN 16 with water at 20 °C up to d 160 mm, PN 10 from d 180 to d 315
- Temperature range: 0 °C ÷ 60 °C
- Reference standards:
- ISO 727, EN ISO 1452-3, EN ISO 15493, BS 4346-1, UNI EN 10226-1
- Fitting material: PVC-U
- Seal material:
- Gaskets in EPDM, on request FKM
- Reinforcing rings (TM3, GM3, MM3, RM3) in stainless steel AISI 430
