RFV
Threaded fittings - reducers.

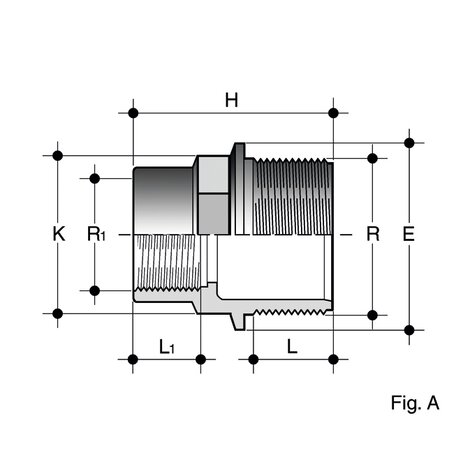

Reducer with BSP threaded male end (R) and BSP threaded female end (R1 reduced) (fig. A).
Series of fittings for pipes conveying fluids under pressure with threaded joints.
| Reference | Name | Product description | dimensionalTable | Main category | Subcategory | Sub sub category | system | Category | family | Material | R x R[5:1] | PN | E | H | K | L | L[5:1] | g |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| RFV012038 | RFV | Series of fittings for pipes conveying fluids under pressure with threaded joints. | - | PVC-U system | BSP Fittings | BSP Fittings - reducers | PVC-U system | Pressure Fittings | BSP Fittings | PVC-U | 1/2" x 3/8" | 16 | 28 | 35 | 23 | 15 | 11,4 | 10 |
| RFV200114 | RFV | Series of fittings for pipes conveying fluids under pressure with threaded joints. | - | PVC-U system | BSP Fittings | BSP Fittings - reducers | PVC-U system | Pressure Fittings | BSP Fittings | PVC-U | 2" x 1"1/4 | 16 | 70 | 65 | 64 | 25,7 | 21,4 | 85 |
| RFV200100 | RFV | Series of fittings for pipes conveying fluids under pressure with threaded joints. | - | PVC-U system | BSP Fittings | BSP Fittings - reducers | PVC-U system | Pressure Fittings | BSP Fittings | PVC-U | 2" x 1" | 16 | 70 | 63 | 64 | 25,7 | 19,1 | 80 |
| RFV200034 | RFV | Series of fittings for pipes conveying fluids under pressure with threaded joints. | - | PVC-U system | BSP Fittings | BSP Fittings - reducers | PVC-U system | Pressure Fittings | BSP Fittings | PVC-U | 2" x 3/4" | 16 | 70 | 60 | 64 | 25,7 | 16,3 | 80 |
| RFV112114 | RFV | Series of fittings for pipes conveying fluids under pressure with threaded joints. | - | PVC-U system | BSP Fittings | BSP Fittings - reducers | PVC-U system | Pressure Fittings | BSP Fittings | PVC-U | 1"1/2 x 1"1/4 | 16 | 58 | 57 | 51 | 21,4 | 21,4 | 54 |
| RFV112100 | RFV | Series of fittings for pipes conveying fluids under pressure with threaded joints. | - | PVC-U system | BSP Fittings | BSP Fittings - reducers | PVC-U system | Pressure Fittings | BSP Fittings | PVC-U | 1"1/2 x 1" | 16 | 58 | 55 | 51 | 21,4 | 19,1 | 52 |
| RFV112034 | RFV | Series of fittings for pipes conveying fluids under pressure with threaded joints. | - | PVC-U system | BSP Fittings | BSP Fittings - reducers | PVC-U system | Pressure Fittings | BSP Fittings | PVC-U | 1"1/2 x 3/4" | 16 | 58 | 50 | 51 | 21,4 | 16,3 | 47 |
| RFV112012 | RFV | Series of fittings for pipes conveying fluids under pressure with threaded joints. | - | PVC-U system | BSP Fittings | BSP Fittings - reducers | PVC-U system | Pressure Fittings | BSP Fittings | PVC-U | 1"1/2 x 1/2" | 16 | 58 | 52 | 51 | 21,4 | 15 | 46 |
| RFV114100 | RFV | Series of fittings for pipes conveying fluids under pressure with threaded joints. | - | PVC-U system | BSP Fittings | BSP Fittings - reducers | PVC-U system | Pressure Fittings | BSP Fittings | PVC-U | 1"1/4 x 1" | 16 | 52 | 52 | 44 | 21,4 | 19,1 | 40 |
| RFV114034 | RFV | Series of fittings for pipes conveying fluids under pressure with threaded joints. | - | PVC-U system | BSP Fittings | BSP Fittings - reducers | PVC-U system | Pressure Fittings | BSP Fittings | PVC-U | 1"1/4 x 3/4" | 16 | 52 | 49 | 44 | 21,4 | 16,3 | 37 |
| RFV114012 | RFV | Series of fittings for pipes conveying fluids under pressure with threaded joints. | - | PVC-U system | BSP Fittings | BSP Fittings - reducers | PVC-U system | Pressure Fittings | BSP Fittings | PVC-U | 1"1/4 x 1/2" | 16 | 52 | 48 | 44 | 21,4 | 15 | 37 |
| RFV100034 | RFV | Series of fittings for pipes conveying fluids under pressure with threaded joints. | - | PVC-U system | BSP Fittings | BSP Fittings - reducers | PVC-U system | Pressure Fittings | BSP Fittings | PVC-U | 1" x 3/4" | 16 | 40 | 46 | 35 | 19,1 | 16,3 | 25 |
| RFV100012 | RFV | Series of fittings for pipes conveying fluids under pressure with threaded joints. | - | PVC-U system | BSP Fittings | BSP Fittings - reducers | PVC-U system | Pressure Fittings | BSP Fittings | PVC-U | 1" x 1/2" | 16 | 40 | 44 | 35 | 19,1 | 15 | 24 |
| RFV100038 | RFV | Series of fittings for pipes conveying fluids under pressure with threaded joints. | - | PVC-U system | BSP Fittings | BSP Fittings - reducers | PVC-U system | Pressure Fittings | BSP Fittings | PVC-U | 1" x 3/8" | 16 | 40 | 41 | 35 | 19,1 | 11,4 | 20 |
| RFV034012 | RFV | Series of fittings for pipes conveying fluids under pressure with threaded joints. | - | PVC-U system | BSP Fittings | BSP Fittings - reducers | PVC-U system | Pressure Fittings | BSP Fittings | PVC-U | 3/4" x 1/2" | 16 | 34 | 39 | 28 | 16,3 | 15 | 15 |
| RFV034038 | RFV | Series of fittings for pipes conveying fluids under pressure with threaded joints. | - | PVC-U system | BSP Fittings | BSP Fittings - reducers | PVC-U system | Pressure Fittings | BSP Fittings | PVC-U | 3/4" x 3/8" | 16 | 34 | 36 | 28 | 16,3 | 11,4 | 12 |
| RFV200112 | RFV | Series of fittings for pipes conveying fluids under pressure with threaded joints. | - | PVC-U system | BSP Fittings | BSP Fittings - reducers | PVC-U system | Pressure Fittings | BSP Fittings | PVC-U | 2" x 1"1/2 | 16 | 70 | 65 | 64 | 25,7 | 21,4 | 102 |
