RFV

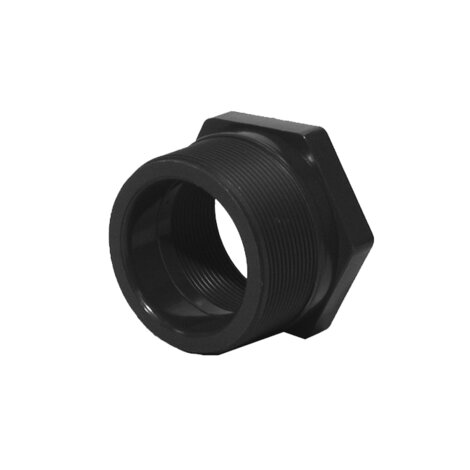

Threaded fittings - reducers.

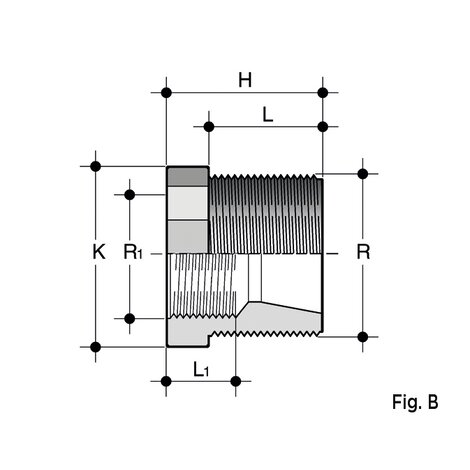

Reducer with BSP threaded male end (R) and BSP threaded female end (R1 reduced) (fig. B).
Series of fittings for pipes conveying fluids under pressure with threaded joints.
| Reference | H | K | K | g |
|---|---|---|---|---|
| RFV212200 | 56 | 80 | 80 | 155 |
| RFV300200 | 66 | 93 | 93 | 185 |
| RFV300212 | 66 | 93 | 93 | 200 |
| RFV400300 | 79 | 118 | 118 | 500 |
