RIV
Solvent weld fittings - reducers.

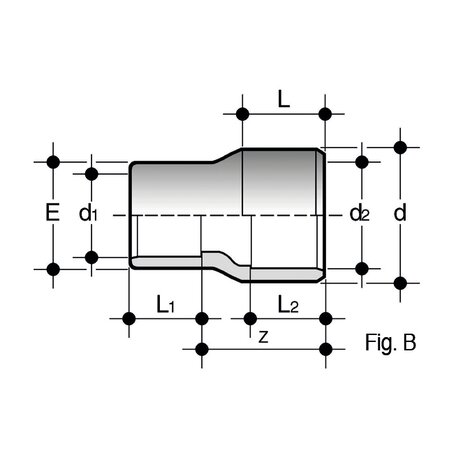

Reducer: solvent weld spigot (d) or solvent weld socket (d2), solvent weld socket (d1 reduced) (Fig.B)
Series of fittings designed for conveying fluids under pressure with a cold chemical weld jointing system (solvent welding) using a suitable solvent cement and cleaner-primer.
| Reference | Z | g |
|---|---|---|
| RIV025020016 | 24,5 | 9 |
| RIV025020020 | 24,5 | 12 |
| RIV032025016 | 30 | 14 |
| RIV032025020 | 30 | 16 |
| RIV032025025 | 30 | 20 |
| RIV040032020 | 36 | 23 |
| RIV040032025 | 36 | 27 |
| RIV040032032 | 36 | 34 |
| RIV050040020 | 44 | 36 |
| RIV050040025 | 44 | 40 |
| RIV050040032 | 44 | 48 |
| RIV050040040 | 44 | 55 |
| RIV063050025 | 54 | 75 |
| RIV063050032 | 54 | 80 |
| RIV063050040 | 54 | 90 |
| RIV063050050 | 54 | 110 |
| RIV075063050 | 62 | 130 |
| RIV075063063 | 62 | 175 |
| RIV110090050 | 88 | 260 |
| RIV110090063 | 88 | 300 |
| RIV110090075 | 88 | 345 |
| RIV110090090 | 88 | 400 |
I: IIP 122 F: AFNOR NF04
RIV: the quality marks refer to dimensions d and d1
