Single-joint Flanged PN10
Single-joint Flanged PVC-U, M/F, Grey RAL 7011, FORSHEDA 601 POWER-LOCK® connection.
The fittings comply with UNI EN ISO 1452, DIN 8063, ISO 2045, ISO/DIS 6455 standards for the transport of pressurised fluids for the supply of drinking water, wastewater and food fluids: oil, wine, milk.

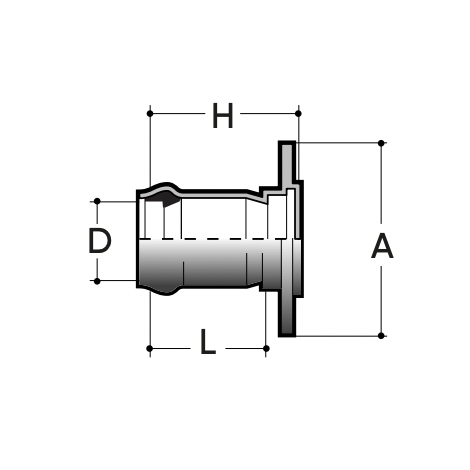

| Reference | L (mm) |
|---|---|
| TPVP08315300FBL | 230 |
| TPVP10063050FBL | 120 |
| TPVP10075065FBL | 120 |
| TPVP10090080FBL | 120 |
| TPVP10110100FBL | 130 |
| TPVP10125110FBL | 140 |
| TPVP10140125FBL | 160 |
| TPVP10160150FBL | 160 |
| TPVP10180180SBL | 180 |
| TPVP10200200FBL | 200 |
| TPVP10225200FBL | 210 |
| TPVP10250250FBL | 220 |
| TPVP10280250FBL | 230 |
*Rubber ring
**PN8
