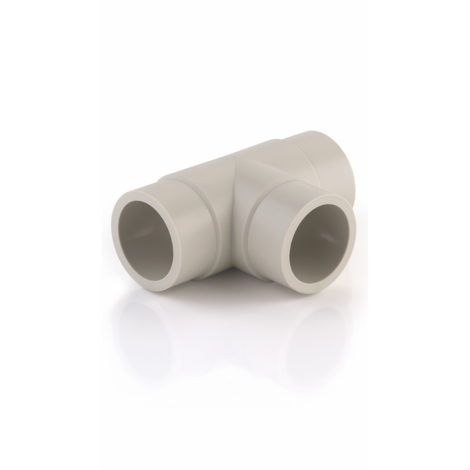

TBM PN10 SDR 11 - S 5 - Fittings equal ends

90° Tee, short spigot for butt welding PN10 SDR 11 - S 5.

Series of fittings designed for conveying fluids under pressure with a weld connection system (butt welding).
Go back Data sheet
Reference Z d g
TBM11020 25 20 11
TBM11025 30 25 15
TBM11032 40 32 30
TBM11040 48 40 55
TBM11050 62 50 115
TBM11063 78 63 230
TBM11075 90 75 390
TBM11090 100 90 645
TBM11110 120 110 1040
TBM11125 125 *125 1480
TBM11140 140 *140 2060
TBM11160 160 160 2925
TBM11180 195 *180 4665
TBM11200 215 *200 6470
TBM11225 245 225 9220
TBM11250 275 *250 12650
TBM11280 310 *280 18205
TBM11315 350 *315 25700
TBM11355 349 *355 30200
TBM11400 360 *400 39100
TBM11450 419 *450 61129
TBM11500 465 *500 84230

*resale products
