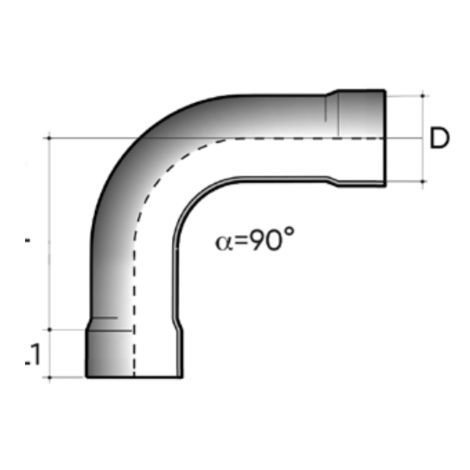

Thermoformed bend R=1.5D 90° F/F PN10
Bend PVC-U, F/F, Grey RAL 7011, gluing connection.
The fittings comply with UNI EN ISO 1452, DIN 8063, ISO 2045, ISO/DIS 6455 standards for the transport of pressurised fluids for the supply of drinking water, wastewater and food fluids: oil, wine, milk.
| Reference | D (mm) | L (mm) |
|---|---|---|
| B9VP10050IIL | 50 | 92 |
| B9VP10063IIL | 63 | 102 |
| B9VP10075IIL | 75 | 118 |
| B9VP10090IIL | 90 | 142 |
| B9VP12110IIL | *110 | 175 |
| B9VP12125IIL | *125 | 200 |
| B9VP12140IIL | *140 | 236 |
| B9VP12160IIL | *160 | 260 |
| B9VP12180IIL | *200 | 330 |
*PN12,5
