TIM - Fitting for socket welding, Tee
90° Tee for socket welding, equal socket.
Series of fittings designed for conveying fluids under pressure with a hot weld connection system (socket welding).

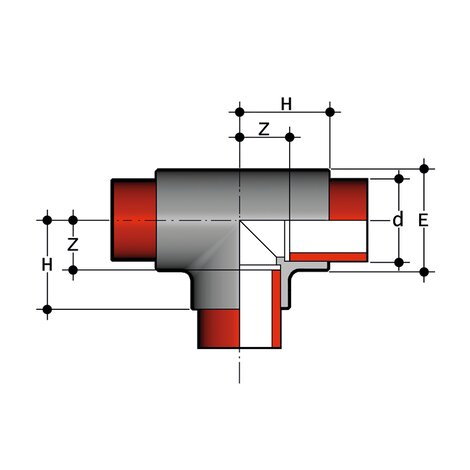

| Reference | H | Z | d | DN | g |
|---|---|---|---|---|---|
| TIM020 | 28 | 13 | 20 | 15 | 19 |
| TIM025 | 32 | 16 | 25 | 20 | 30 |
| TIM032 | 37 | 19 | 32 | 25 | 47 |
| TIM040 | 43 | 23 | 40 | 32 | 80 |
| TIM050 | 52 | 29 | 50 | 40 | 145 |
| TIM063 | 63 | 35 | 63 | 50 | 250 |
| TIM075 | 71 | 40 | 75 | 65 | 370 |
| TIM090 | 82 | 46 | 90 | 80 | 560 |
| TIM110 | 100 | 58 | 110 | 100 | 990 |
