TIMV
Adaptor fittings.

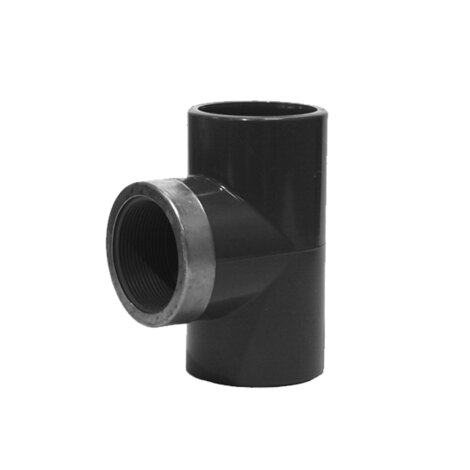

90° Tee with reinforced end: solvent weld socket d and BSP threaded female branch R with stainless steel reinforcing ring.
Series of fittings designed for conveying fluids under pressure with threaded and solvent weld cold chemical jointing systems (solvent welding) using suitable solvent cement and cleanerprimer.
| Reference | Name | Product description | dimensionalTable | Main category | Subcategory | Sub sub category | system | Category | family | Material | d x R | PN | E | E[5:1] | L | L[5:1] | Z | Z[5:1] | g |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| TIMV016038 | TIMV | Series of fittings designed for conveying fluids under pressure with threaded and solvent weld cold chemical jointing systems (solvent welding) using suitable solvent cement and cleanerprimer. | - | PVC-U system | ISO-BSP Fittings | ISO-BSP Fittings - adaptor | PVC-U system | Pressure Fittings | ISO-BSP Fittings | PVC-U | 16 x 3/8" | 16 | 23,5 | 24,5 | 14 | 11,4 | 9 | 11 | 24 |
| TIMV020012 | TIMV | Series of fittings designed for conveying fluids under pressure with threaded and solvent weld cold chemical jointing systems (solvent welding) using suitable solvent cement and cleanerprimer. | - | PVC-U system | ISO-BSP Fittings | ISO-BSP Fittings - adaptor | PVC-U system | Pressure Fittings | ISO-BSP Fittings | PVC-U | 20 x 1/2" | 16 | 28,5 | 29 | 16 | 15 | 12 | 13 | 38 |
| TIMV025034 | TIMV | Series of fittings designed for conveying fluids under pressure with threaded and solvent weld cold chemical jointing systems (solvent welding) using suitable solvent cement and cleanerprimer. | - | PVC-U system | ISO-BSP Fittings | ISO-BSP Fittings - adaptor | PVC-U system | Pressure Fittings | ISO-BSP Fittings | PVC-U | 25 x 3/4" | 16 | 35 | 36 | 19 | 16,3 | 15 | 17 | 60 |
| TIMV032100 | TIMV | Series of fittings designed for conveying fluids under pressure with threaded and solvent weld cold chemical jointing systems (solvent welding) using suitable solvent cement and cleanerprimer. | - | PVC-U system | ISO-BSP Fittings | ISO-BSP Fittings - adaptor | PVC-U system | Pressure Fittings | ISO-BSP Fittings | PVC-U | 32 x 1" | 16 | 43 | 44 | 22 | 19,1 | 18 | 21 | 105 |
| TIMV040114 | TIMV | Series of fittings designed for conveying fluids under pressure with threaded and solvent weld cold chemical jointing systems (solvent welding) using suitable solvent cement and cleanerprimer. | - | PVC-U system | ISO-BSP Fittings | ISO-BSP Fittings - adaptor | PVC-U system | Pressure Fittings | ISO-BSP Fittings | PVC-U | 40 x 1"1/4 | 16 | 50 | 51 | 26 | 21,4 | 21,5 | 27 | 125 |
| TIMV050112 | TIMV | Series of fittings designed for conveying fluids under pressure with threaded and solvent weld cold chemical jointing systems (solvent welding) using suitable solvent cement and cleanerprimer. | - | PVC-U system | ISO-BSP Fittings | ISO-BSP Fittings - adaptor | PVC-U system | Pressure Fittings | ISO-BSP Fittings | PVC-U | 50 x 1"1/2 | 16 | 61 | 62 | 31 | 21,4 | 27 | 37 | 210 |
| TIMV063200 | TIMV | Series of fittings designed for conveying fluids under pressure with threaded and solvent weld cold chemical jointing systems (solvent welding) using suitable solvent cement and cleanerprimer. | - | PVC-U system | ISO-BSP Fittings | ISO-BSP Fittings - adaptor | PVC-U system | Pressure Fittings | ISO-BSP Fittings | PVC-U | 63 x 2" | 16 | 76 | 77 | 38 | 25,7 | 33,5 | 46 | 415 |
