VRUFV - Check valve DN 10:100
Check valve with BSP threaded female union ends.
The VR is an angle seat check valve with weighted PVC piston that allows the passage of fluid in one direction only.

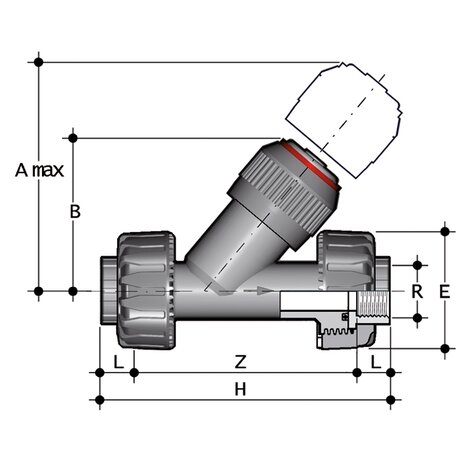

| Reference | Name | Product description | product.detail.attribute.technicalFeatures | dimensionalTable | Main category | Subcategory | Sub sub category | system | Category | family | series | Material | R | DN | PN | A max | B | E | H | L | Z | Fig. | g |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| VRUFV038E | VRUFV - Check valve DN 10:100 | The VR is an angle seat check valve with weighted PVC piston that allows the passage of fluid in one direction only. | Connection system for solvent weld, threaded and flanged jointsNo metal parts in contact with the fluidPiston with counterweight able to work with high intensity fluidLimited pressure drop. Only minimum back pressure is required for the hermetic sealValve material compatibility (PVC-U) with water conveyance, drinking water and other food substances according to current regulationsCan be maintained with the valve body installed | - | PVC-U system | Auxiliary valves | VR DN 10÷100 | PVC-U system | Manual valves | Auxiliary valves | VR DN 10÷100 | PVC-U | 3/8” | 10 | 16 | 125 | 72 | 55 | 135 | 11,4 | 112,2 | A | 221 |
| VRUFV012E | VRUFV - Check valve DN 10:100 | The VR is an angle seat check valve with weighted PVC piston that allows the passage of fluid in one direction only. | Connection system for solvent weld, threaded and flanged jointsNo metal parts in contact with the fluidPiston with counterweight able to work with high intensity fluidLimited pressure drop. Only minimum back pressure is required for the hermetic sealValve material compatibility (PVC-U) with water conveyance, drinking water and other food substances according to current regulationsCan be maintained with the valve body installed | - | PVC-U system | Auxiliary valves | VR DN 10÷100 | PVC-U system | Manual valves | Auxiliary valves | VR DN 10÷100 | PVC-U | 1/2” | 15 | 16 | 125 | 72 | 55 | 143 | 15 | 113 | A | 230 |
| VRUFV034E | VRUFV - Check valve DN 10:100 | The VR is an angle seat check valve with weighted PVC piston that allows the passage of fluid in one direction only. | Connection system for solvent weld, threaded and flanged jointsNo metal parts in contact with the fluidPiston with counterweight able to work with high intensity fluidLimited pressure drop. Only minimum back pressure is required for the hermetic sealValve material compatibility (PVC-U) with water conveyance, drinking water and other food substances according to current regulationsCan be maintained with the valve body installed | - | PVC-U system | Auxiliary valves | VR DN 10÷100 | PVC-U system | Manual valves | Auxiliary valves | VR DN 10÷100 | PVC-U | 3/4” | 20 | 16 | 145 | 84 | 66 | 160 | 16,3 | 127,4 | A | 390 |
| VRUFV100E | VRUFV - Check valve DN 10:100 | The VR is an angle seat check valve with weighted PVC piston that allows the passage of fluid in one direction only. | Connection system for solvent weld, threaded and flanged jointsNo metal parts in contact with the fluidPiston with counterweight able to work with high intensity fluidLimited pressure drop. Only minimum back pressure is required for the hermetic sealValve material compatibility (PVC-U) with water conveyance, drinking water and other food substances according to current regulationsCan be maintained with the valve body installed | - | PVC-U system | Auxiliary valves | VR DN 10÷100 | PVC-U system | Manual valves | Auxiliary valves | VR DN 10÷100 | PVC-U | 1” | 25 | 16 | 165 | 95 | 75 | 183 | 19,1 | 144,8 | A | 602 |
| VRUFV114E | VRUFV - Check valve DN 10:100 | The VR is an angle seat check valve with weighted PVC piston that allows the passage of fluid in one direction only. | Connection system for solvent weld, threaded and flanged jointsNo metal parts in contact with the fluidPiston with counterweight able to work with high intensity fluidLimited pressure drop. Only minimum back pressure is required for the hermetic sealValve material compatibility (PVC-U) with water conveyance, drinking water and other food substances according to current regulationsCan be maintained with the valve body installed | - | PVC-U system | Auxiliary valves | VR DN 10÷100 | PVC-U system | Manual valves | Auxiliary valves | VR DN 10÷100 | PVC-U | 1” 1/4 | 32 | 16 | 190 | 111 | 87 | 214 | 21,4 | 171,2 | A | 932 |
| VRUFV112E | VRUFV - Check valve DN 10:100 | The VR is an angle seat check valve with weighted PVC piston that allows the passage of fluid in one direction only. | Connection system for solvent weld, threaded and flanged jointsNo metal parts in contact with the fluidPiston with counterweight able to work with high intensity fluidLimited pressure drop. Only minimum back pressure is required for the hermetic sealValve material compatibility (PVC-U) with water conveyance, drinking water and other food substances according to current regulationsCan be maintained with the valve body installed | - | PVC-U system | Auxiliary valves | VR DN 10÷100 | PVC-U system | Manual valves | Auxiliary valves | VR DN 10÷100 | PVC-U | 1” 1/2 | 40 | 16 | 210 | 120 | 100 | 235 | 21,4 | 192,2 | A | 1341 |
| VRUFV200E | VRUFV - Check valve DN 10:100 | The VR is an angle seat check valve with weighted PVC piston that allows the passage of fluid in one direction only. | Connection system for solvent weld, threaded and flanged jointsNo metal parts in contact with the fluidPiston with counterweight able to work with high intensity fluidLimited pressure drop. Only minimum back pressure is required for the hermetic sealValve material compatibility (PVC-U) with water conveyance, drinking water and other food substances according to current regulationsCan be maintained with the valve body installed | - | PVC-U system | Auxiliary valves | VR DN 10÷100 | PVC-U system | Manual valves | Auxiliary valves | VR DN 10÷100 | PVC-U | 2” | 50 | 16 | 240 | 139 | 120 | 285 | 25,7 | 233,6 | A | 2348 |
- Connection system for solvent weld, threaded and flanged joints
- No metal parts in contact with the fluid
- Piston with counterweight able to work with high intensity fluid
- Limited pressure drop. Only minimum back pressure is required for the hermetic seal
- Valve material compatibility (PVC-U) with water conveyance, drinking water and other food substances according to current regulations
- Can be maintained with the valve body installed
